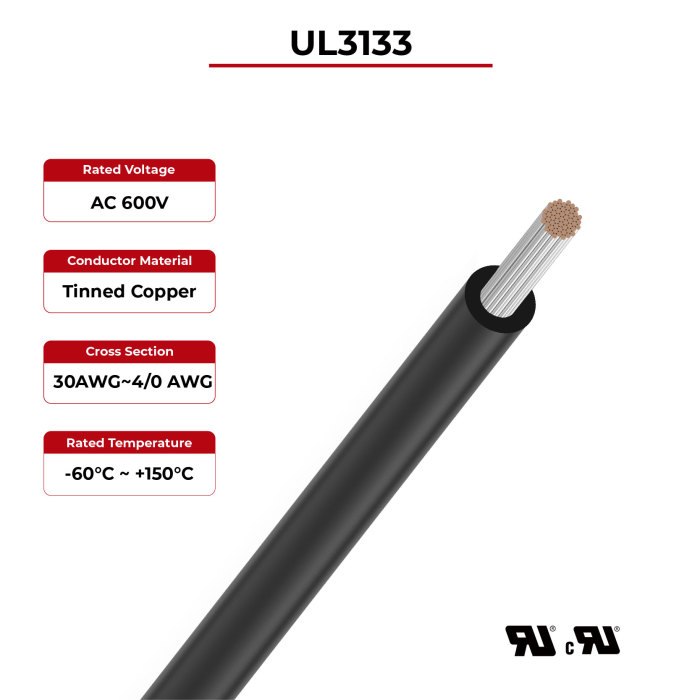

600V High-temperature Cable UL3133

Conductor: 30AWG~4/0AWG
Color: Black, Optional color

Share
Conductor	Solid or Stranded, tinned or bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-60°C ~ +150°C
Rated voltage	AC 600V
Flame Test	Horizontal flame CSA FT2
According to	UL758, UL1581

Contact Now

Favorites

Detail Information

UL3133 High-temperature Cable Advantages

UL3133 High-temperature Cable

UL3133 high-temperature cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free

· High temperature resistant

· Ozone / oxidation resistant

· High flexibility

UL3133 High-temperature Cable Technical Data

Conductor	Solid or Stranded, tinned or bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-60°C ~ +150°C
Rated voltage	AC 600V
According to	UL758, UL1581
Flame Test	Horizontal flameCSA FT2

UL3133 High-temperature Cable Product description

Cable Name	Cross Section (AWG/kcmil)	Conductor Size (mm)	Approx. Conductor Stranded O.D. (mm)	Insulation AVG Thickness (mm)	Insulation Min Thickness (mm)	Insulation Diameter (mm)	Max Cond. resistance (Ω/km ,20ºC)	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
UL3133	28	7/0.127	0.39	0.76	0.69	2.00±0.10	239	6	2
	26	7/0.16	0.48	0.76	0.69	2.10±0.10	150	6	2
	24	11/0.16	0.61	0.76	0.69	2.20±0.10	94.2	6	2
	22	17/0.16	0.76	0.76	0.69	2.40±0.10	59.4	6	2
	20	21/0.178	0.94	0.76	0.69	2.60±0.10	36.7	6	2
	18	16/0.254	1.17	0.76	0.69	2.80±0.10	23.2	6	2
	16	26/0.254	1.49	0.76	0.69	3.10±0.10	14.6	6	2
	14	41/0.254	1.87	0.76	0.69	3.50±0.10	8.96	6	2
	12	65/0.254	2.36	0.76	0.69	4.00±0.10	5.64	6	2
	10	105/0.254	3.00	0.76	0.69	4.70±0.10	3.546	6	2
	8	164/0.254	3.80	0.76	0.69	6.50±0.10	2.230	6	2
	6	260/0.254	4.80	0.76	0.69	7.70±0.10	1.4030	6	2
	4	412/0.254	6.00	0.76	0.69	9.10±0.10	0.8820	6	2
	2	665/0.254	7.70	0.76	0.69	11.50±0.10	0.5548	6	2
	1	820/0.254	8.50	0.76	0.69	13.90±0.10	0.4398	6	2
	1/0	1035/0.254	9.60	0.76	0.69	14.80±0.10	0.3487	6	2
	2/0	1311/0.254	10.80	0.76	0.69	16.00±0.10	0.2766	6	2
	3/0	1650/0.254	12.20	0.76	0.69	17.50±0.10	0.2194	6	2
	4/0	2090/0.254	13.80	0.76	0.69	19.50±0.10	0.1722	6	2
