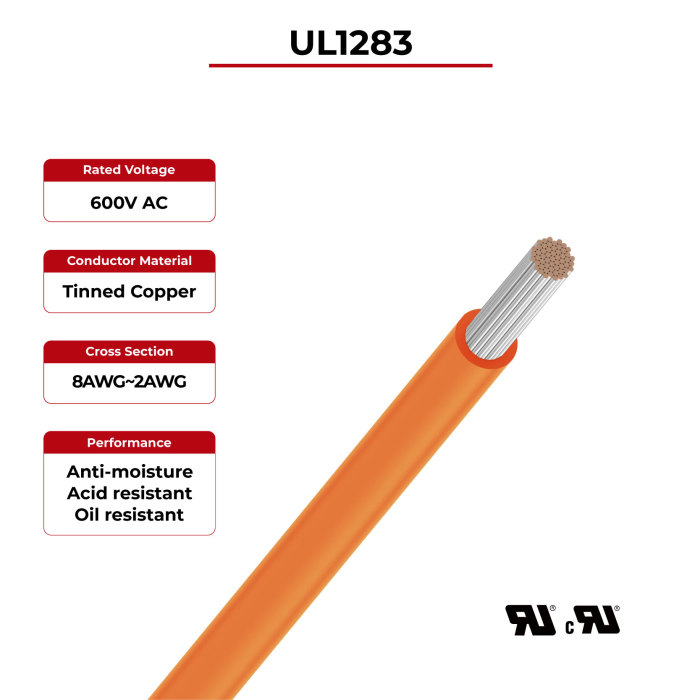

600V Hook-up Wire UL 1283

Conductor: 8AWG~2AWG
Color: Orange, Optional color

Share
Conductor	Tinned copper stranded, or bare copper
Insulation	Lead free PVC, Passed RoHS
Rated temperature	105°C
Rated voltage	600V
Flame test	Horizontal flame UL VW-1 & CSA FT1
According to	UL758, UL1581

Contact Now

Favorites

Detail Information

UL 1283 Hook-up Wire Advantages

UL 1283 Hook-up Wire

UL 1283 Hook-Up Wire is a single-conductor internal wiring cable designed for use inside electrical and electronic equipment. It is widely applied in control panels, power supplies, transformers, motors, and general internal wiring where reliable electrical performance and heat resistance are required.

· Anti-moisture

· Acid resistant

· Oil resistant

· Easy stripping and cutting

UL 1283 Hook-up Wire Technical Data

Conductor:	Tinned copper stranded, or bare copper stranded or solid conductor
Insulation:	Lead free PVC, Passed RoHS
Rated temperature:	105°C
Rated voltage:	600V
According to:	UL758, UL1581
Flame test:	Horizontal flame UL VW-1 & CSA FT1

UL 1283 Hook-up Wire Product description

Cable Name	Cross Section (AWG)	Insulation Nom Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
UL 1283	8	1.52	7.30	2.35
	7	1.52	7.80	1.87
	6	1.52	8.40	1.48
	5	1.52	9.00	1.17
	4	1.52	9.70	0.928
	3	1.52	10.50	0.744
	2	1.52	11.50	0.590
