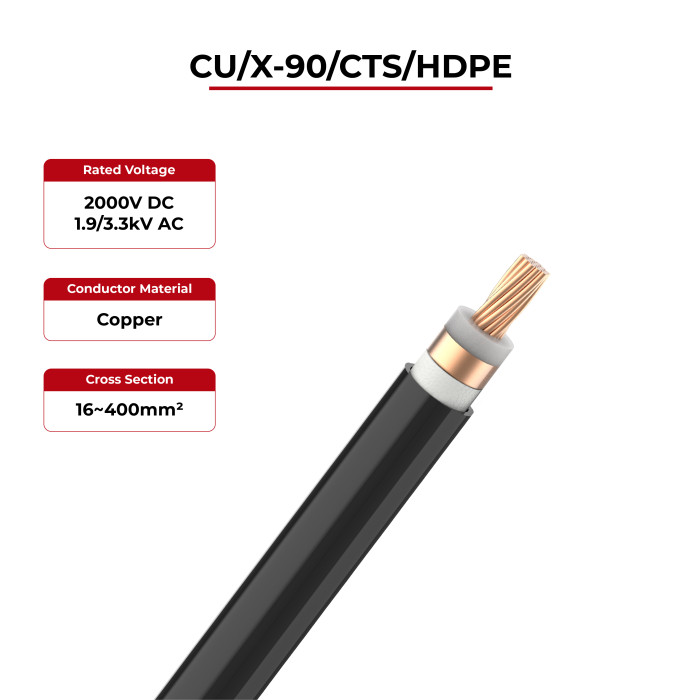

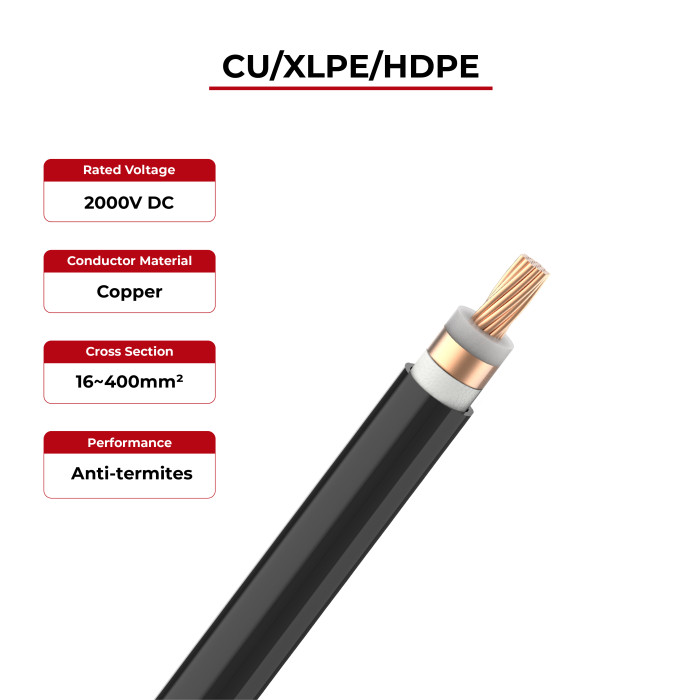

2000V Main Cable For BESS HDPE
2000V Main Cable For BESS HDPE2000V Main Cable For BESS HDPE

2000V Main Cable For BESS HDPE

Cables for use in BESS projects, manufactured complying with Australian and international standards.
Share
ConductorCopper
InsulationXLPE
JacketHDPE
Rated voltage2000V DC
Rated temperature-55°C ~ +55°C
Contact Now
Favorites
Detail Information
2000V Main cable Introduction
ul battery cable
2000V Main Cable For BESS HDPE
Cables for use in BESS projects, manufactured complying with Australian and international standards such as AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033.
2000V Main Cable Technical Data
Conductor
Copper
Insulation
XLPE
Jacket
HDPE
Rated temperature
-55°C ~ +55°C
Rated voltage
U=2000V DC,
U0/U=1900V/3300V AC
Test voltage
6.5kV/5min
Maximum Short-Circuit Temperature
250°C/5s
Max. DC Voltage
UM=2200V DC
According to
AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033
ul energy storage cable
UL3132 High-temperature Cable Product description
Conductor Area
Conductor OD
Insulation Thichness
Insulation OD
Metal Shielded Copper Tape
Shielding OD
Non-woven Wrapping Tape
Wrapping Tape OD
Jacket Thickness
Cable OD
Conductor Resistance Max
(Ώ/km,20°C)
16
4.5
2.0
8.5
0.12
8.9
0.1
9.2
1.80
12.8
0.1500
25
5.6
2.0
9.6
0.12
10.0
0.1
10.3
1.80
13.9
0.7270
35
6.7
2.0
10.7
0.12
11.1
0.1
11.4
1.80
15.0
0.5240
50
8.0
2.0
12.0
0.12
12.4
0.1
12.7
1.80
16.3
0.3870
70
9.4
2.0
13.4
0.12
13.8
0.1
14.1
1.80
17.7
0.2680
95
11.0
2.0
15.0
0.12
15.4
0.1
15.7
1.80
19.3
0.1930
120
12.4
2.0
15.4
0.12
16.8
0.1
17.1
1.80
20.7
0.1530
150
13.8
2.0
17.8
0.12
18.2
0.1
18.5
1.80
22.1
0.1240
185
15.3
2.0
19.3
0.12
19.7
0.1
20.0
1.80
23.6
0.0991
240
17.5
2.0
21.5
0.12
21.9
0.1
22.2
1.80
25.8
0.0754
300
19.5
2.0
23.5
0.12
23.9
0.1
24.2
1.80
28.0
0.0601
400
22.6
2.0
26.6
0.12
27.0
0.1
27.3
1.80
31.3
0.0470
