1500V Main Cable For BESS PVC

Cables for use in BESS projects, manufactured complying with Australian and international standards.

Share
Conductor	Alumuinum
Insulation	X-90 XLPE
Jacket	5V-90 PVC
Rated voltage	1500V DC
Rated temperature	-40°C ~ +90°C

Contact Now

Favorites

Detail Information

1500V Main cable Introduction

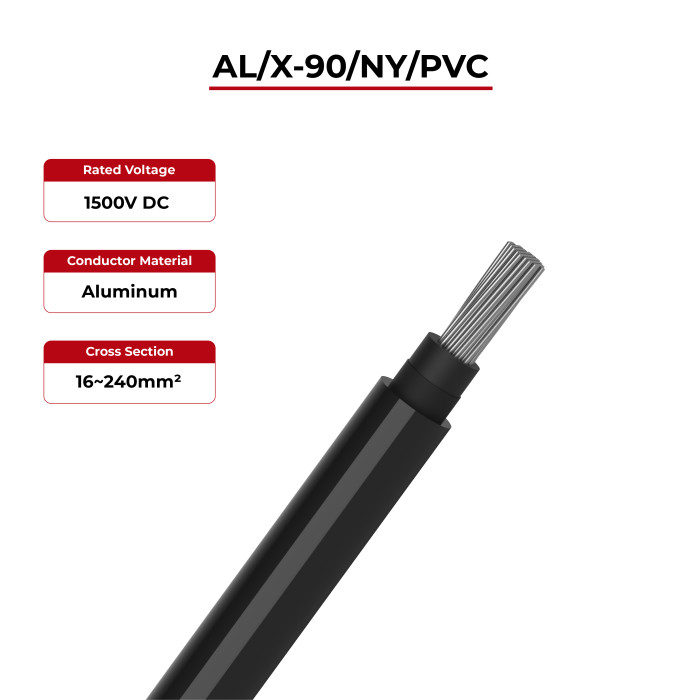

1500V Main Cable For BESS PVC

Cables for use in BESS projects, manufactured complying with Australian and international standards such as AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033.

1500V Main Cable Technical Data

Conductor	Aluminum
Insulation	X-90 XLPE
Nylon layer	Nylon
Jacket	5V-90 PVC
Rated temperature	-40°C ~ +90°C
Rated voltage	U=1500V DC, U₀/U=1000V/1000V AC
Test voltage	6.5kV AC/5min
Maximum Short-Circuit Temperature	250°C/5s
Max. DC Voltage	U_M=1800V DC
According to	AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033

1500V Main Cable Product description

Conductor Area	Insulation Thichness	Jacket Thickness	Cable OD	Approx. Mass of Cable (kg/km)	Conductor Resistance Max (Ώ/km,20°C)
16	0.7	1.4	11.4	89	1.91
25	0.9	1.4	12.8	127	1.20
35	0.9	1.4	13.8	160	0.868
50	1.0	1.4	15.1	204	0.641
70	1.1	1.4	17.0	277	0.443
95	1.1	1.5	18.8	364	0.320
120	1.2	1.5	20.5	448	0.253
150	1.4	1.6	22.6	551	0.206
185	1.6	1.6	24.6	678	0.164
240	1.7	1.7	27.4	670	0.125
