Home / All / Solar Connector / SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV

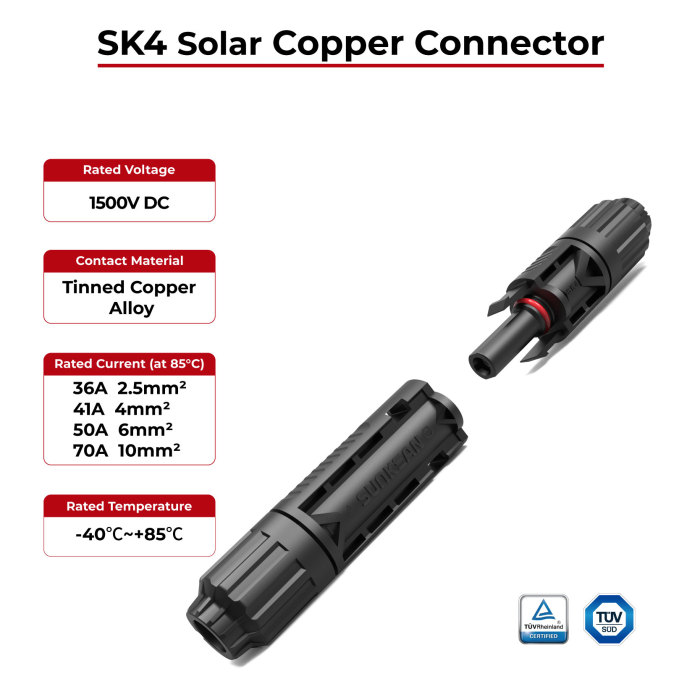

SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV

The SK4 Solar Copper Connectors are made from high-performance metal and plastic materials, and are fully compliant with the IEC 62852 standard. They are specifically engineered to meet the demanding environmental requirements of the photovoltaic industry.

Share
Operating Temperature Range	-40°C~+85°C
Upper Limit Temperature	120°C
Protection Rating	IP65/IP68 (1m,1h )
Rated Voltage	1500V DC
Rated Current (at 85°C)	36A 2 .5mm², 41A 4mm², 50A 6mm², 70A 10mm²
Rated Impluse Voltage	27.2kV
Pollution Degree	2 (inside of enclosure)
Insulation Material	PA66
Contact Material	Tinned Copper Alloy
Certification Standards	IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd.
Certification	TÜV Rheinland / TÜV SÜD

Contact Now

Favorites

Detail Information

SK4 Solar Copper Connector Advantages

SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV

· Secure Connection, Superior Electrical Performance

· Longer Lifespan with Advanced Anti-Corrosion Coating

· Quick Installation, Compatible with Standard Systems

· Stable Performance in Extreme Environments

· Lightweight Design for Efficient Installation

· Eco-Friendly Production, Lower Lifecycle Cost

SK4 Solar Copper Connector Product TUV description

Product Name	Item	Plug Connector
SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV	Operating Temperature Range	-40℃~+85℃
	Upper Limit Temperature	120°C
	Protection Rating	IP65 / IP68 (1m,1h)
	Protection Rating (Unmated)	IP 2X
	Rated Voltage	1500V DC
	Rated Current (at 85°C)	36A 2.5mm²41A 4mm² 50A 6mm² 70A 10mm²
	Rated Impluse Voltage	27.2kV
	Contact Resistance	≤0.3mΩ
	Flammability Rating	UL94V-0
	Overvoltage Category	CAT III
	Pollution Degree	2 (inside of enclosure)
	Insulation Material	PA66
	Contact Material	Tinned Copper Alloy
	Terminal Connection Method	Crimping
	Connector Locking Mechanism	Locking
	Mating Cycles of the Connector	100
	Certification Standards	IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd. 1:2020
	Certification	TÜV Rheinland / TÜV SÜD
