Home / All / Solar Connector / SK4A Solar Copper-Aluminum Connector 6mm 10mm TÜV

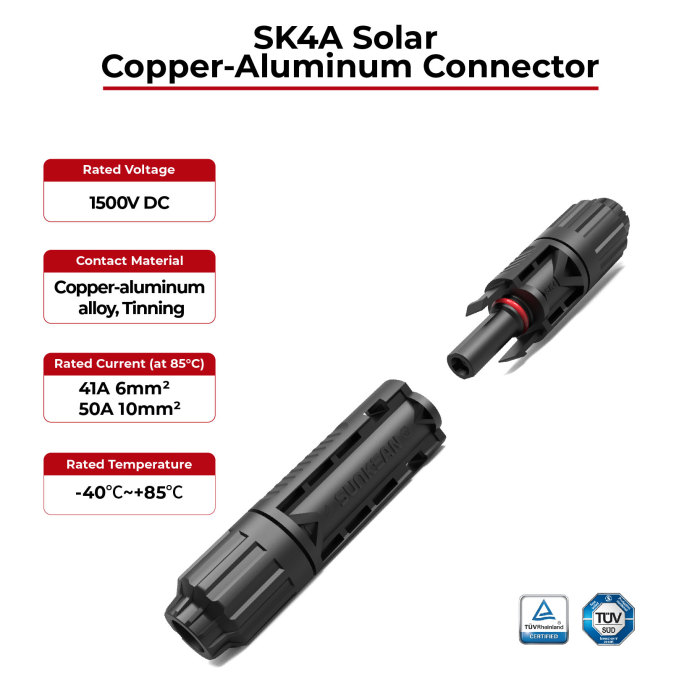

SK4A Solar Copper-Aluminum Connector 6mm 10mm TÜV

The SK4A Solar Copper-Aluminum Connectors are a new generation of leading products in the photovoltaic industry.They replace the traditional cumbersome assembly method of copper-aluminum tube crimping followed by nut locking with a quick-installation structure that connects copper and aluminum terminals directly. This enables fast and convenient copper-to-aluminum connections in photovoltaic power stations and similar applications.

Share
Operating Temperature Range	-40°C~+85°C
Upper Limit Temperature	120°C
Protection Rating	IP68 ( 1m,1h ) / IP65
Rated Voltage	1500V DC
Rated Current (at 85°C)	41A 6mm², 50A 10mm²
Rated Impluse Voltage	16kV
Pollution Degree	2 (inside of enclosure)
Insulation Material	PA66
Contact Material	Copper-Aluminum alloy，Tin-Plated
Certification Standards	IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd.
Certification	TÜV Rheinland / TÜV SÜD

Contact Now

Favorites

Detail Information

SK4A Solar Copper-Aluminum Connector Advantages

SK4A Solar Copper-Aluminum Connector 6mm 10mm TÜV

· Secure Connection, Superior Electrical Performance

· Longer Lifespan with Advanced Anti-Corrosion Coating

· Quick Installation, Compatible with Standard Systems

· Stable Performance in Extreme Environments

· Lightweight Design for Efficient Installation

· Eco-Friendly Production, Lower Lifecycle Cost

SK4A Solar Copper-Aluminum Connector Product TUV description

Product Name	Item	Plug Connector
SK4A Solar Copper-Aluminum Connector 6mm 10mm TÜV	Operating Temperature Range	-40℃~+85℃
	Upper Limit Temperature	120°C
	Protection Rating	IP68 ( 1m,1h ) / IP65
	Protection Rating (Unmated)	IP 2X
	Rated Voltage	1500V DC
	Rated Current (at 85°C)	41A 6mm² 50A 10mm²
	Rated Impluse Voltage	16kV
	Contact Resistance	≤0.3mΩ
	Flammabil ity Rating	UL94V-0
	Overvoltage Category	CAT III
	Pollution Degree	2 (inside of enclosure)
	Insulation Material	PA66
	Contact Material	Copper-Aluminum alloy，Tin-Plated
	Terminal Connection Method	Crimping
	Connector Locking Mechanism	Locking
	Mating Cycles of the Connector	100
	Certification Standards	IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd. 1:2020
	Certification	TÜV Rheinland / TÜV SÜD
