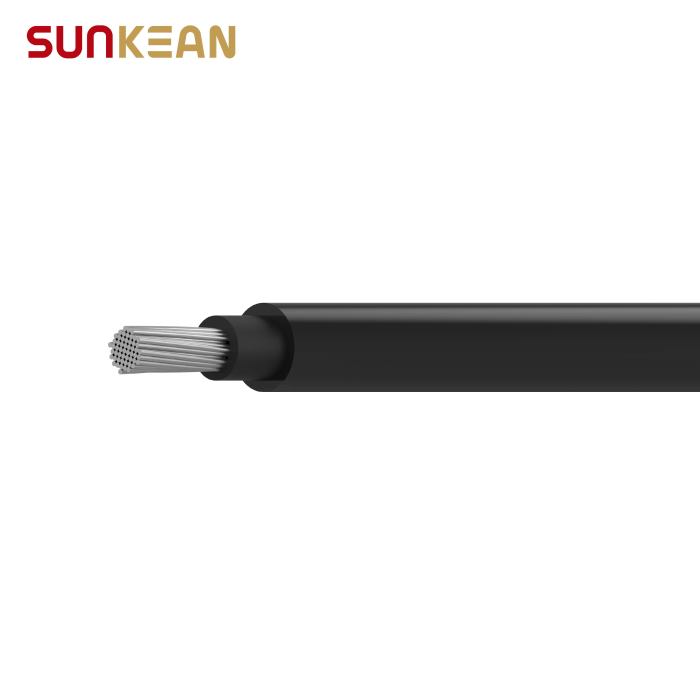

1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K
1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K
Conductor: 1×2.5~400mm²
Insulation Color: Black
Jacket Color: Black
Insulation Color: Black
Jacket Color: Black
| Rated temperature | -40°C~90°C |
|---|---|
| Max. Short Circuit Temp | 250°C / 5s |
| Tested voltage | 6.5kVAC / 5min |
| Rated voltage | DC 1500V U0/U=1000V |
| Conductor | Stranded aluminum alloy, Class 5, 1×2.5~400mm² |
| Insulation | XLPE |
| Jacket | XLPO |
| Flame test | IEC 60332-1 |
Detail Information
2PfG 2642 PV1500DC-AL-K Solar Cable Advantages
1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components, and especially suitable for desert solar projects, featuring an AD8 water resistance rating and utilizing superior XLPE insulation material.
· Higher UV-stability
· Resistant to high and low temperature differences
· Water resistance AD8
· Wear resistant
· Higher mechanical stability
· Higher insulation resistance
· Moisture-proof and waterproof
2PfG 2642 PV1500DC-AL-K Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
2PfG 2642 PV1500DC-AL-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K | 2.5 | 0.70 | 3.70 | 0.80 | 5.30 | 13.20 |
4 | 0.70 | 4.20 | 0.80 | 5.80 | 8.10 | |
6 | 0.70 | 4.70 | 0.80 | 6.30 | 5.05 | |
10 | 0.80 | 5.90 | 0.80 | 7.50 | 3.08 | |
16 | 0.90 | 7.20 | 0.90 | 9.00 | 1.91 | |
25 | 1.00 | 8.70 | 1.00 | 10.70 | 1.200 | |
35 | 1.10 | 10.00 | 1.10 | 12.20 | 0.868 | |
50 | 1.20 | 11.60 | 1.20 | 14.00 | 0.641 | |
70 | 1.20 | 13.50 | 1.20 | 15.90 | 0.443 | |
95 | 1.30 | 15.50 | 1.30 | 18.10 | 0.320 | |
120 | 1.30 | 17.00 | 1.30 | 19.60 | 0.253 | |
150 | 1.40 | 18.90 | 1.40 | 21.70 | 0.206 | |
185 | 1.60 | 21.00 | 1.60 | 24.20 | 0.164 | |
240 | 1.70 | 23.80 | 1.70 | 27.20 | 0.125 | |
300 | 1.80 | 26.40 | 1.80 | 30.00 | 0.1000 | |
400 | 2.00 | 30.10 | 2.00 | 34.10 | 0.0778 |
