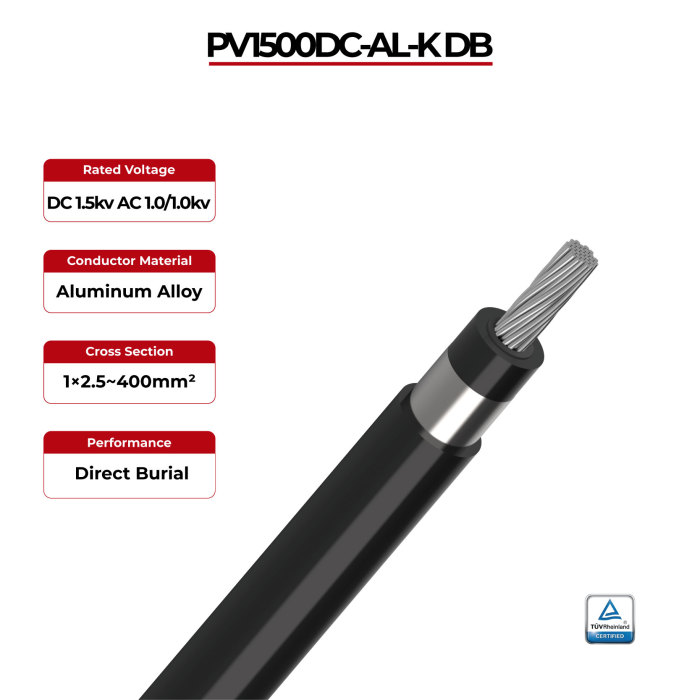

1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL-K DB

Conductor: 1×2.5~400mm²
Insulation Color: Black
Jacket Color: Black

Share
Rated temperature	-40°C~90°C
Max. Short Circuit Temp	250°C / 5s
Tested voltage	6.5kVAC / 5min
Rated voltage	DC 1500V U0/U=1000V
Conductor	Stranded aluminum alloy, Class 5, 1×2.5~400mm²
Insulation	XLPO
Cover	XLPO
Armouring	Steel tapes
Outer Sheath	XLPO
Flame test	IEC 60332-1

Contact Now

Favorites

Detail Information

2PfG 2642 PV1500DC-AL-K DB Solar Cable Advantages

1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL-K DB

UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.

· Suitable for direct burial

· UV resistant

· Radial humidity resistant

· Flame retardant lEC 60332-1

· Steel tapes armored, suitable as grounding andprotective earth

2PfG 2642 PV1500DC-AL-K DB Solar Cable Technical Data

Rated temperature	-40°C~90°C
Max. Short Circuit Temp	250°C / 5s
Tested voltage	6.5kVAC / 5min
Rated voltage	DC 1500V U0/U=1000V

2PfG 2642 PV1500DC-AL-K DB Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Armored O.D. (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
1.5kV Solar Cable Aluminum Conductor Single Core 2PfG 2642 PV1500DC-AL-K DB	2.5	0.70	1.50	6.50	9.50	13.20
	4	0.70	1.50	7.00	10.00	8.10
	6	0.70	1.50	7.50	10.50	5.05
	10	0.80	1.50	8.70	11.70	3.08
	16	0.90	1.50	10.00	13.00	1.91
	25	1.00	1.50	11.50	14.50	1.200
	35	1.10	1.50	12.80	15.80	0.868
	50	1.20	1.50	14.40	17.40	0.641
	70	1.20	1.13	16.30	19.30	0.443
	95	1.30	1.60	18.30	21.50	0.320
	120	1.30	1.60	19.80	23.00	0.253
	150	1.40	1.70	21.70	25.10	0.206
	185	1.60	1.70	23.80	27.20	0.164
	240	1.70	1.80	27.00	30.60	0.125
	300	1.80	1.90	29.60	33.40	0.1000
	400	2.00	2.00	34.50	38.50	0.0778
