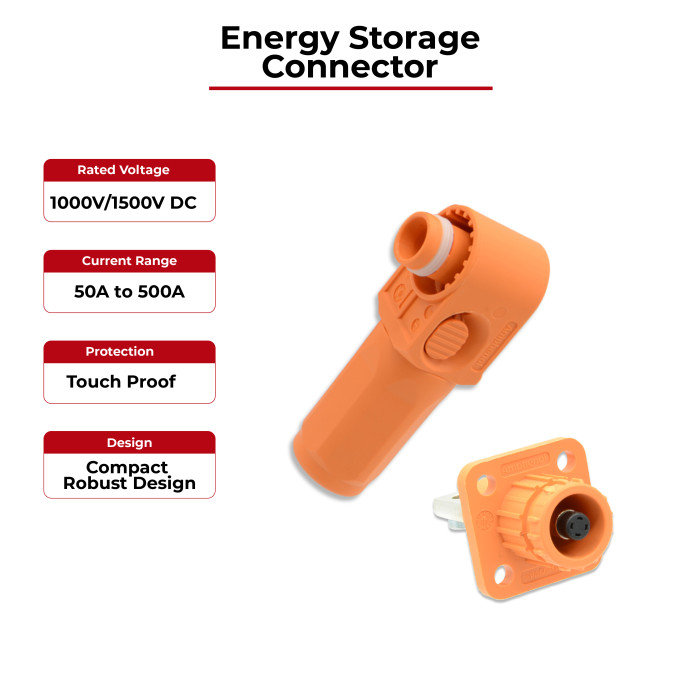

1000V/1500V DC Energy Storage Connector
This energy storage connector is a high-performance compression lug solution, designed to meet the needs of high-voltage power applications across industries like electric vehicles (EVs), energy storage, and industrial equipment. Offering easy field installation, superior safety features, and robust performance. torque tools.
Detail Information
1000V/1500V DC Energy Storage Connector Advantages
1000V/1500V DC Energy Storage Connector
The SurLok Plus series stands out as an ideal solution for industries requiring compression lugs that provide efficient, secure, and reliable power connections in high-voltage environments. Its ability to handle both new installations and retrofits without specialized tools makes it a versatile choice for technicians and engineers alike. Whether in electric vehicles, energy storage systems, or industrial heavy equipment, SurLok Plus delivers exceptional performance while ensuring maximum safety.
Its advanced design offers not only ease of installation but also the flexibility to adapt to various configurations, such as rotating plugs and multiple termination options. With built-in safety features like HVIL and EMI shielding, SurLok Plus is equipped to meet the stringent requirements of today’s power-hungry applications.
1000V/1500V DC Energy Storage Connector Description
Electrical | |
| Voltage | 1000V/1500V DC |
| Current Rating | Up to 500amps |
| Number of Contacts | 1 |
| EMI | Optional (8mm/14mm) |
HVIL | Optional (8mm/14mm) |
Touch proof | IP2X |
Mechanical | |
Cable O.D. | Ø4.8mm ~ 28mm |
Mating Cycles | 100+ |
Wire size (mm²) | 2.5mm²~150mm² |
Keyway | Multiple |
Locking Element | Spring / Secondary Lock |
Material | |
Contact Plating | Silver over nickel |
Contacts | Copper alloy |
Sealing components | Silicone |
EMI components | Aluminum |
Shell | Thermoplastic |
Environmental | |
Temperature Range | -40 °C ~ 125 °C (1500V DC) | -40 °C ~ 105 °C (1000V DC) |
Flammability | UL94 V-0 |
Protection class | IP67 |
