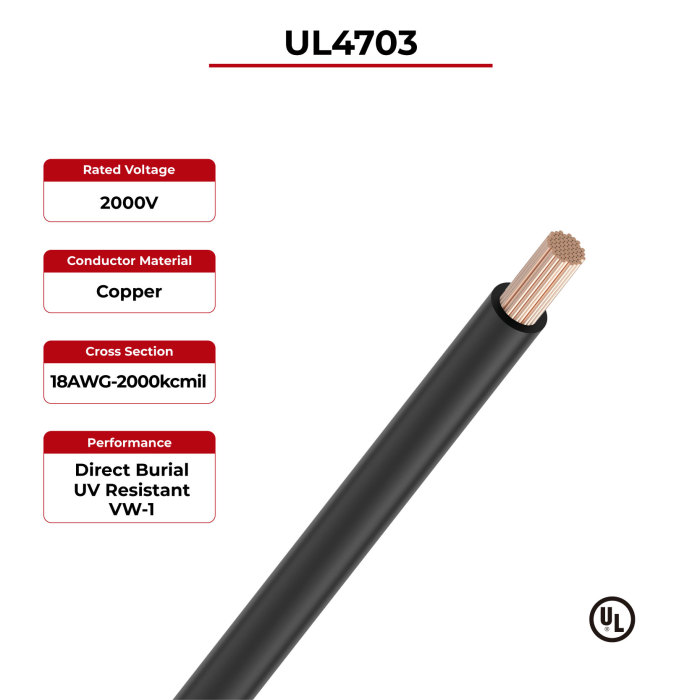

2kV PV Wire Copper Conductor Single Layer UL4703

Conductor: 12AWG~2000kcmil
Color: Black, red or other colors

Share
Rated temperature	-40°C ~ +90°C
Rated voltage	2000V
Insulation	XLPO, Black, red or other colors
Conductor	Aluminum alloy
Reference Standard	UL4703, UL44, UL854, RoHS

Contact Now

Favorites

Detail Information

UL 4703 PV Wire Advantages

2kV PV Wire Copper Conductor Single Layer UL4703

This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.

· UV resistant

· Rated for direct buria

· High flame retardant FT

· Low smoke halogen free

· Higher insulation resistance

UL 4703 PV Wire Technical Data

Rated temperature	-40°C ~ +90°C
Rated voltage	2000V
Reference Standard	UL 4703 PV wire UL 44 Thermoset-insulated cables UL 854 Service-entrance cables RoHs Compliant

UL 4703 PV Wire Product description

Cable Name	Cross Section (AWG)	Insulation Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
2kV UL4703 Single Layer	6	2.15	8.50	0.660
	4	2.15	9.60	0.415
	2	2.15	10.90	0.261
	1	2.66	12.80	0.207
	1/0	2.66	13.80	0.164
	2/0	2.66	14.80	0.130
	3/0	2.66	16.00	0.103
	4/0	2.66	17.30	0.082
	250	3.04	19.20	0.069
	300	3.04	20.40	0.058
	350	3.04	21.60	0.050
	400	3.04	22.70	0.043
	500	3.04	24.60	0.035
	550	3.43	26.30	0.032
	600	3.43	28.00	0.027
	700	3.43	28.80	0.025
	750	3.43	29.50	0.023
