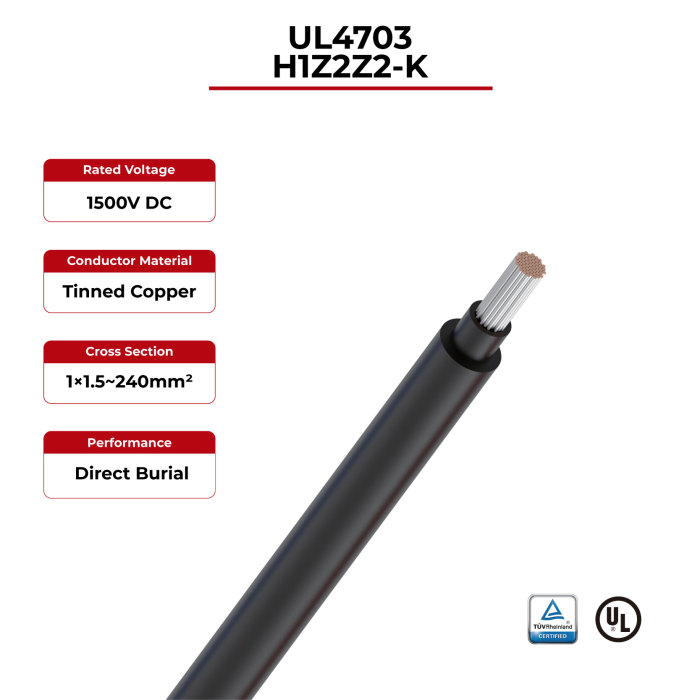

1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703

1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703
1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL47031.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL47031.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703

1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703

Conductor: 2.5~6mm²
Color: Black, red or other colors
Rated temperature-40°C~90°C
Tested voltage6500V AC
Rated voltage1500V DC
ConductorTinned copper 2.5 ~ 6mm²
InsulationXLPO, Black or white
Out LayerXLPO, Black or red or other colors
Flame TestVW-1/ IEC 60332-1
Detail Information
EN-50618 H1Z2Z2-K & UL4703 Solar Cable Advantages
solar cable
1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.

· UV resistant
· Rated for direct burial
· High flame retardant Vw-1/IEC60332-1
· Low smoke halogen free
· Higher insulation resistance

EN-50618 H1Z2Z2-K & UL4703 Solar Cable Technical Data
Rated temperature
-40°C~90°C
Tested voltage
6500V AC
Rated voltage
1500V DC
Testing Standard
Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504
Flame Test: VW-1/ IEC 60332-1
solar cable
EN-50618 H1Z2Z2-K & UL4703 Solar Cable
EN-50618 H1Z2Z2-K & UL4703 Solar Cable Product description
Cable Name
Cross Section
(AWG)
Inner Layer Thickness
(mm)
Inner Layer O.D.
(mm)
Outer Layer Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
1.5kV Solar Cable Copper Conductor EN-50618 H1Z2Z2-K & UL4703
12
1.16
4.58
0.38
5.34
5.43
10
1.16
5.19
0.38
5.95
3.41
8
1.35
6.31
0.76
7.83
2.14
6
1.69
7.9
0.76
9.42
1.35
4
1.69
9.1
0.76
10.62
0.848
3
1.69
9.78
0.76
11.3
0.673
2
1.69
10.57
0.76
12.09
0.534
1
2.02
12.22
1.14
14.5
0.423
1/0
2.02
13.23
1.14
15.51
0.335
2/0
2.02
14.04
1.14
16.32
0.266
3/0
2.02
15.64
1.14
17.92
0.211
