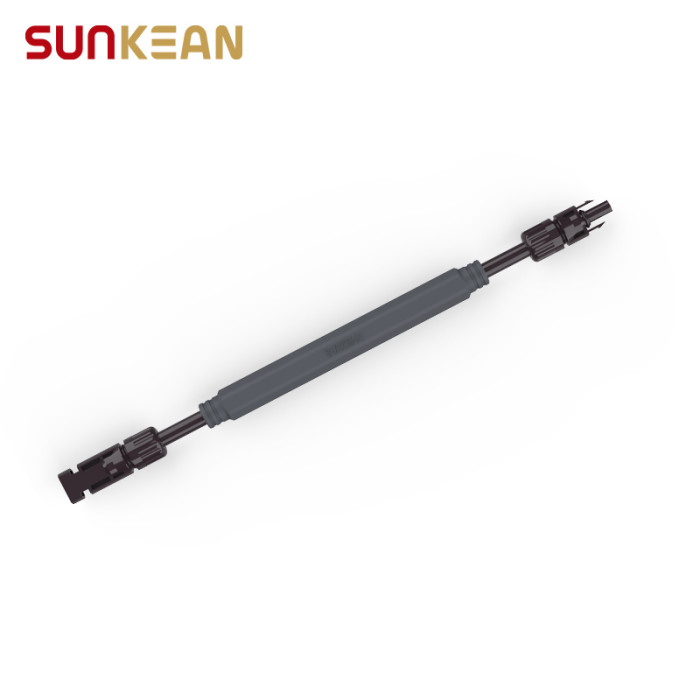

1500V Solar Cable In-line Fuse Assembly

1500V Solar Cable In-line Fuse Assembly

1500V Solar Cable In-line Fuse Assembly

Made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability.
Fuse-linkStandard Ref. to: UL248-19, IEC 60269-6
Insulation MaterialSpecial-Hotmelt, UV-stable, IP68
Flame ClassSelf-extinguishing UL94-5VA
Detail Information
In-line Fuse Assembly Solar Cable Advantages
solar cable

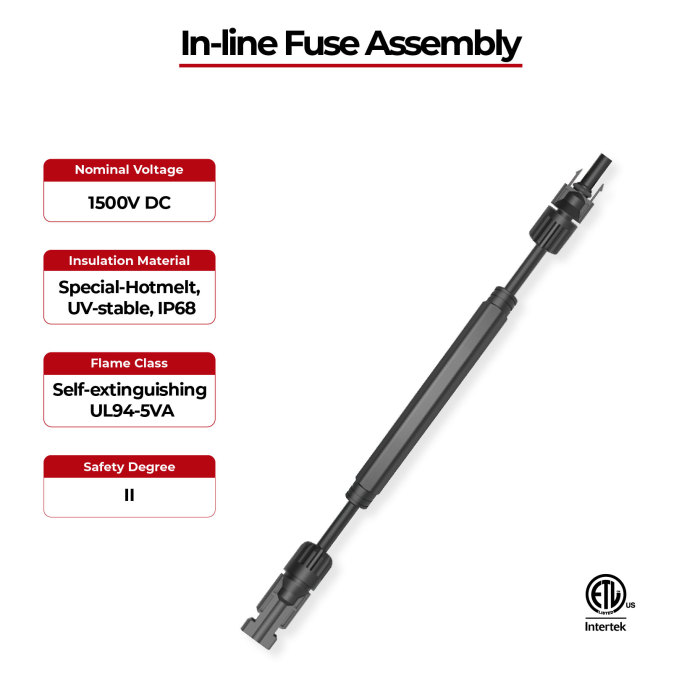

1500V Solar Cable In-line Fuse Assembly
SUNKEAN In-line Fuse Assembly is made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability. They can be installed on site. Low contact resistance and high current transfer capability ensure high production efficiency. With IP68 waterproof rating, it can be used in a wide operating temperature range.
In-line Fuse Assembly Solar Cable Technical Data
Product Name
Item
Plug Connector
1500V Solar Cable In-line Fuse Assembly
Nominal Voltage
1500V DC
Interrupting Ratings
50kA
Fuse-link
Standard Ref. to: UL248-19, IEC 60269-6
Insulation Material
Special-Hotmelt, UV-stable, IP68
Flame Class
Self-extinguishing UL94-5VA
Working Environment Temperature
-40℃~+60'℃, Humidity range: 5%~95%
Over Voltage Category/Pollution Degree
CATIII/3
Safety Degree
II
In-line Fuse Assembly Solar Cable Product description
Product Type
Fuse Voltage
Fuse Current
Cable Spec
Connector
S-I...VI:Fuse Holder
1000V DC
1-32A (10x85mm)
10-50A (14x85mm)
60A (24x65mm)
70A (24x65mm)
80A (24x65mm)
3.5mm2
5.5mm2
4mm2 /12AWG
6mm2 /10AWG
10mm2 /8AWG
16mm2 /6AWG
TE PV4-S
STAUBLI MC4
STAUBLI MC4-EVO2
AMPHENOL H4S
QC4.10 Plus
TLIAN T4
TRINA TS4
JINKO JK03M2
LONGI PV-LR5
TONGLIN TL-CABLE01S
