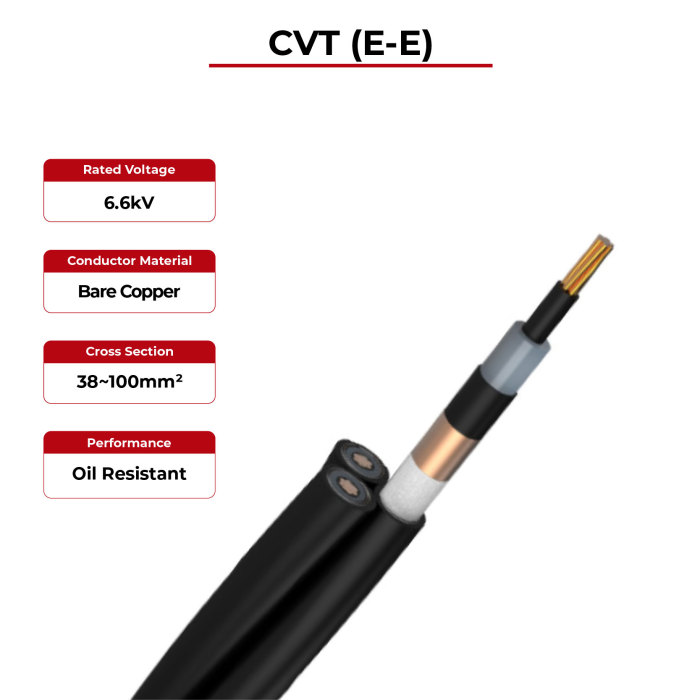

6.6kV Solar Cable Copper Conductor CVT (E-E)

Conductor: 38~100mm²
Insulation Color: Natural
Jacket Color: Black

Share
Rating Voltage	6600V
Testing Voltage	AC 17kV
Reference Standard	JIS C 3005, JIS C 3606
Conductor	Bare copper
Insulation	XLPE, Natural color
Shield	Semi-conductive shield, metal shield
Fabric	Nonwoven fabric
Jacket	PVC, Black

Contact Now

Favorites

Detail Information

CVT (E-E) Solar Cable Advantages

6.6kV Solar Cable Copper Conductor CVT (E-E)

The cable has a voltage of 6.6kV, which is a medium voltage between 1 kV and 35 kV. This type of cable has copper conductor, and is widely used in urban distribution networks, industrial enterprises, and large-building power supply systems. Medium-voltage cables are economical and practical for power transmission and can meet the power needs of most occasions. In addition, its structural design is complex, including a semi-conductive shielding layer, a metal shielding layer, and non-woven fabric.

· Good flexibility

· Damp heat resistant

· Oil resistant

· UV resistant

· Flame retardant JIS C 3005 (60 degrees tilt test)

CVT (E-E) Solar Cable Technical Data

Tested voltage	17kV AC
Rated voltage	6600V
Reference Standard	6600V

CVT (E-E) Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
6.6kV Solar Cable Copper Conductor CVT (E-E)	38	4.00	2.10	46.50	0.491
	60	4.00	2.20	51.50	0.311
	100	4.00	2.40	56.00	0.187
