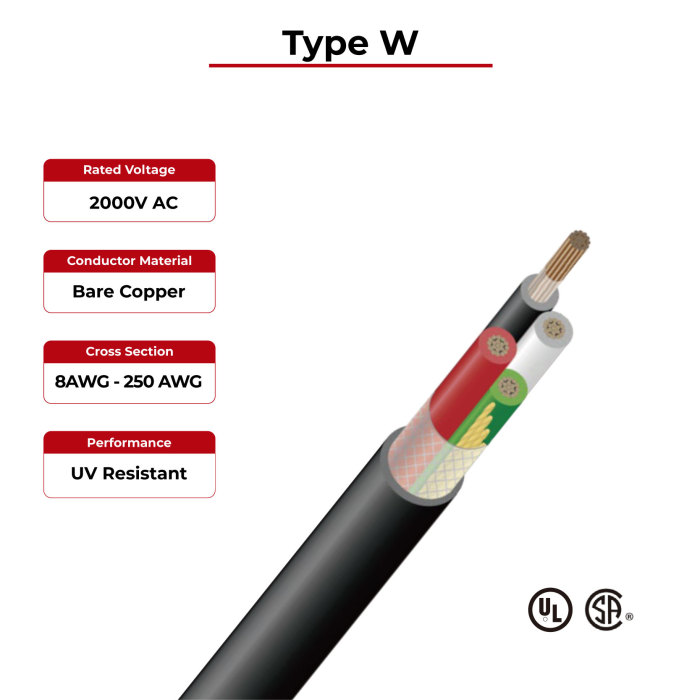

2000V High Speed Cable Type W

Conductor: 8AWG~250AWG
Color: Optional color

Detail Information

2000V High Speed Cable Type W Advantages

Type W High Speed Cable

Type W high speed cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free

· High temperature resistant

· Ozone / oxidation resistant

· High flexibility

Type W High Speed Cable Technical Data

Type W High Speed Cable Product description

Cable Name	Conductor			Insulation		Jacket
Cable Name	Conductor Size (mm)	Cross Section (AWG/kcmil)	Approx. Conductor Stranded O.D. (mm)	Insulation AVG Thickness (mm)	Approx. Insulation O.D. (mm)	Jacket AVG Thickness (mm)	Approx. Jacket O.D. (mm)	Max Cond. resistance (Ω/km ,20ºC)
Type W High Speed Cable	8		2.55	1.52	5.8	1.91	9.9	5.430
			3.20	1.52	6.4	1.91	10.6	3.409
			4.10	1.52	7.4	1.91	11.5	2.144
			5.10	1.52	8.4	2.41	13.5	1.348
			6.40	1.52	9.7	2.41	14.8	0.8481
			7.20	1.52	10.5	2.41	15.7	0.6727
			8.0	1.52	11.3	2.41	16.5	0.5335
			9.0	2.03	13.4	2.41	18.5	0.4230
			10.1	2.03	14.6	2.41	19.5	0.3354
			11.35	2.03	15.9	2.41	21.1	0.2660
			12.7	2.03	17.1	2.41	22.3	0.2110
			14.3	2.03	18.7	2.41	23.9	0.1673
			15.5	2.41	20.7	2.41	25.9	0.1416
			17.0	2.41	22.2	2.41	27.4	0.1180
			18.4	2.41	23.6	2.41	28.8	0.1011
			19.6	2.41	24.8	2.41	30.0	0.08851
			20.9	2.41	26.1	2.41	31.4	0.07867
			22.0	2.41	27.2	2.41	32.5	0.07080
