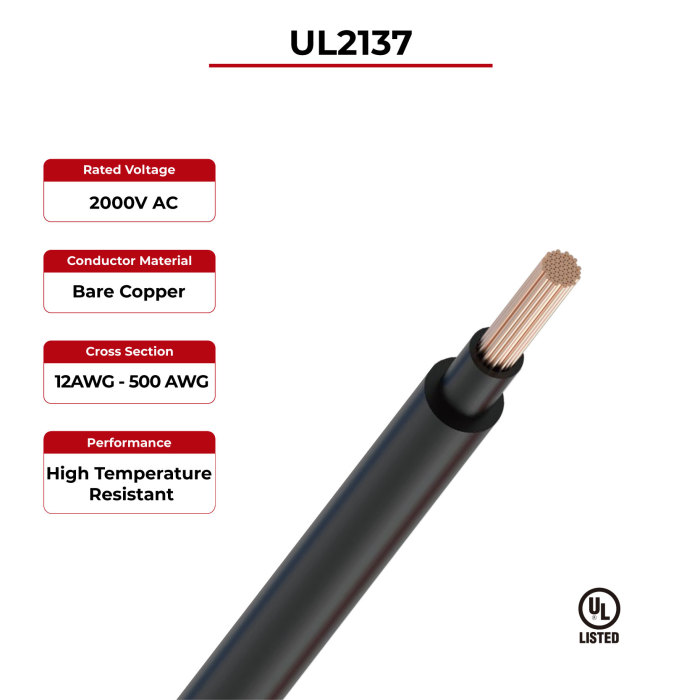

2000V High Speed Cable UL2137

Conductor: 12AWG~500AWG
Color: Optional color

Share
Categories	AI Interconnection Cable
Brand	SUNKEAN Solar Manufacturer
Model	UL2137
Conductor	Stranded bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-40°C ~ +150°C
Rated voltage	AC 2000V
Flame Test	Vertical flame test VW-1, Horizontal flame CSA FT1/FT2
According to	UL758, UL1581

Detail Information

UL2137 High Speed Cable Advantages

UL2137 High Speed Cable

UL2137 high speed cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free

· High temperature resistant

· Ozone / oxidation resistant

· High flexibility

UL2137 High Speed Cable Technical Data

Conductor	Stranded bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-40°C ~ +150°C
Rated voltage	AC 2000V
According to	UL2137
Flame Test	Vertical flame test VW-1 Horizontal flame CSA FT1/FT2

UL2137 High Speed Cable Product description

Cable Name	Cross Section (AWG/kcmil)	Conductor Size (mm)	Approx. Conductor Stranded O.D. (mm)	Insulation AVG Thickness (mm)	Approx. Insulation O.D. (mm)	Jacket AVG Thickness (mm)	Approx. Jacket O.D. (mm)	Max Cond. resistance (Ω/km ,20ºC)	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
UL2137 High Speed Cable	12	259/0.127	2.55	1.52	5.8	1.91	9.9	5.430	7.5	6
	10	413/0.127	3.20	1.52	6.4	1.91	10.6	3.409	7.5	6
	8	665/0.127	4.10	1.52	7.4	1.91	11.5	2.144	10	7
	6	1064/0.127	5.10	1.52	8.4	2.41	13.5	1.348	10	7
	4	1672/0.127	6.40	1.52	9.7	2.41	14.8	0.8481	10	7
	3	2109/0.127	7.20	1.52	10.5	2.41	15.7	0.6727	10	7
	2	2664/0.127	8.0	1.52	11.3	2.41	16.5	0.5335	10	7
	1	3367/0.127	9.0	2.03	13.4	2.41	18.5	0.4230	13	8
	1/0	4218/0.127	10.1	2.03	14.6	2.41	19.5	0.3354	13	8
	2/0	3367/0.160	11.35	2.03	15.9	2.41	21.1	0.2660	13	8
	3/0	4218/0.160	12.7	2.03	17.1	2.41	22.3	0.2110	13	8
	4/0	3405/0.200	14.3	2.03	18.7	2.41	23.9	0.1673	13	8
	250	4033/0.200	15.5	2.41	20.7	2.41	25.9	0.1416	15	9.5
	300	3002/0.254	17.0	2.41	22.2	2.41	27.4	0.1180	15	9.5
	350	3496/0.254	18.4	2.41	23.6	2.41	28.8	0.1011	15	9.5
	400	3996/0.254	19.6	2.41	24.8	2.41	30.0	0.08851	15	9.5
	450	4514/0.254	20.9	2.41	26.1	2.41	31.4	0.07867	15	9.5
	500	4995/0.254	22.0	2.41	27.2	2.41	32.5	0.07080	15	9.5
