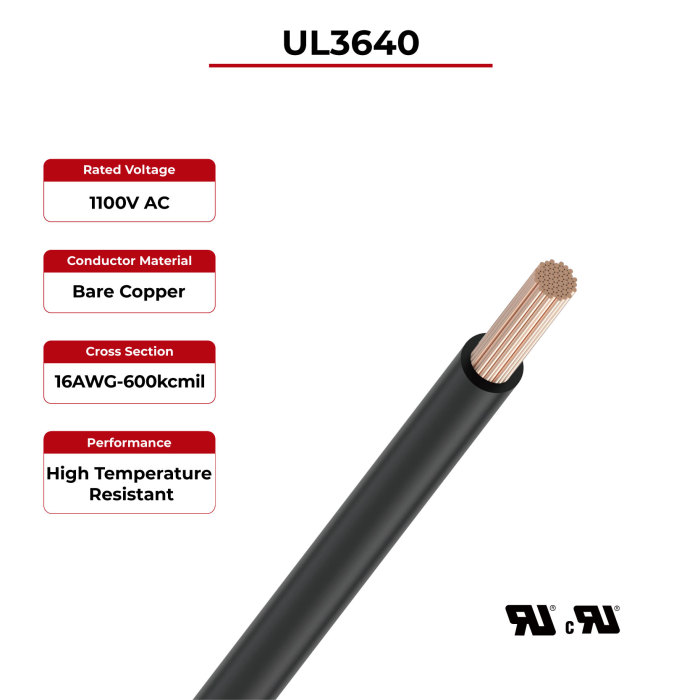

1100V High Speed Cable UL3640

Conductor: 16AWG~1AWG
Color: Optional color

Share
Categories	AI Interconnection Cable
Brand	SUNKEAN Solar Manufacturer
Model	UL3640
Conductor	Stranded bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-40°C ~ +150°C
Rated voltage	AC 1100V
Flame Test	Vertical flame test VW-1, Horizontal flame CSA FT1/FT2
According to	UL758, UL1581

Detail Information

UL3640 High Speed Cable Advantages

UL3640 High Speed Cable

UL3640 high speed cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free

· High temperature resistant

· Ozone / oxidation resistant

· High flexibility

UL3640 High Speed Cable Technical Data

Conductor	Stranded bare copper conductor
Insulation	Silicone rubber insulator
Rated temperature	-40°C ~ +150°C
Rated voltage	AC 1100V
According to	UL758, UL1581
Flame Test	Vertical flame test VW-1 Horizontal flame CSA FT1/FT2

UL3640 High Speed Cable Product description

Cable Name	Cross Section (AWG/kcmil)	Conductor Size (mm)	Approx. Conductor Stranded O.D. (mm)	Insulation AVG Thickness (mm)	Insulation Min Thickness (mm)	Insulation Diameter (mm)	Max Cond. resistance (Ω/km ,20ºC)	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
UL3640 High Speed Cable	16	105/0.127	1.64	1.27	1.14	4.30±0.20	13.7	10	3.3
	14	168/0.127	2.10	1.27	1.14	4.80±0.20	8.62	10	3.3
	12	259/0.127	2.55	1.27	1.14	5.30±0.20	5.43	10	3.3
	10	413/0.127	3.30	1.27	1.14	6.0±0.20	3.409	10	3.3
	8	665/0.127	4.10	1.27	1.14	6.90±0.20	2.144	10	3.3
	6	1064/0.127	5.10	1.27	1.14	7.90±0.25	1.348	10	3.3
	4	1672/0.127	6.50	1.27	1.14	9.30±0.30	0.8481	10	3.3
	2	2664/0.127	8.10	1.27	1.14	10.90±0.30	0.5335	10	3.3
	1	3367/0.127	9.15	1.27	1.14	12.0±0.35	0.4230	10	3.3
