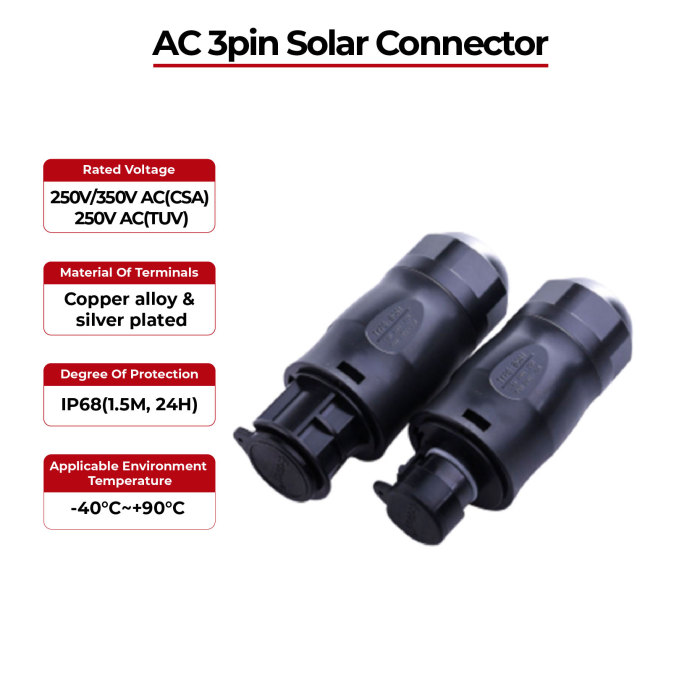

AC 3pin IP68 Solar Connector UL

Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.

Share
Level protection of enclosure	IP68
Plastic material	high-quality plastic material
Installation	Screw connection for easy field installation

Detail Information

AC 3pin IP68 Solar Connector Advantages

Solar Connector AC 3pin IP68 UL

Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.

· Screw connection for easy field installation

· IP68 level protection of enclosure

· Choose the best plastic material, ensure the product performance and using life

· Product quality is stable and reliable

AC 3pin IP68 Solar Connector Product description

Product Name	Item	Cable to Cable	Flange to Cable
Solar Connector AC 3pin IP68 UL	Outline size (Close state)	Ø34.8*153 mm	Ø36*120 mm
	Applicable environment temperature	-40°C~+90°C
	Rated voltages	250V/350V AC(CSA) 250V AC(TUV)
	Rated current	25A(4mm²)
	Max current	30A(4mm²)
	Number of terminals	2+PE
	Material of terminals	Copper alloy & silver plated
	Contact resistance	≤1mΩ
	Material of enclosure	PPO
	Over-voltage category	III
	Insulation resistance	≥100MΩ
	Degree of protection by enclosure	IP68(1.5M, 24H)
	Enclosure flame class	UL94-V0
	Applicable wire gauge	2.5/4.0mm²
	Outer cable diameter	10-14mm
	Termination	Screw type
	Locking system	Snap-in
	Standard	UL6703A; EN61535; PPP59015A; 2013
