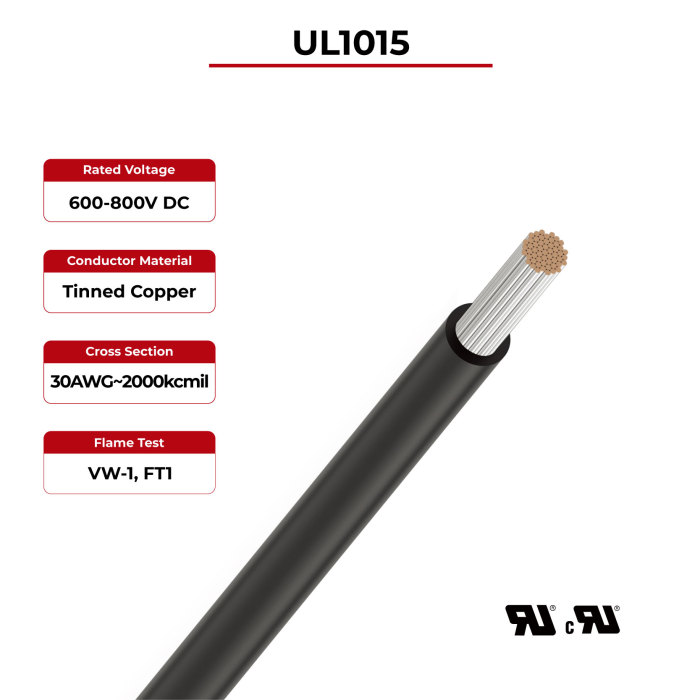

600V Energy Storage Cable UL 1015
Conductor: 30AWG~2000kcmil
Color: Black, Optional color
Color: Black, Optional color
Detail Information
UL 1015 Energy Storage Cable Advantages
UL 1015 Energy Storage Cable
UL 1015 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
UL 1015 Energy Storage Cable Technical Data
|
Conductor:
|
Tinned copper stranded, or bare copper stranded or solid conductor
|
|
|
Insulation:
|
Lead free PVC, Passed RoHS |
|
|
Rated temperature:
|
80°C, 90°C, 105°C
|
|
|
Rated voltage:
|
600Vac or 750Vdc
|
|
According to: | UL758, UL1581 | |
Flame test: | Horizontal flame
UL VW-1 & CSA FT1 | |
UL 1015 Energy Storage Cable Product description
Cable Name |
Cross Section
(AWG) |
Insulation Nom Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
UL 1015 | 24 | 0.76 | 2.20 | 93.25 |
22 | 0.76 | 2.35 | 55.00 | |
20 | 0.76 | 2.55 | 34.60 | |
|
18
|
0.76
|
3.78
|
21.80 | |
|
16
|
0.76
|
3.10
|
14.64 | |
14 | 0.76 | 3.50 | 9.25 | |
12 | 0.76 | 4.00 | 5.82 | |
10 | 0.76 | 4.60 | 3.66 | |
9 | 0.76 | 5.30 | 2.96 | |
8 | 1.14 | 6.50 | 2.35 | |
7 | 1.14 | 7.00 | 1.87 | |
6 | 1.52 | 8.40 | 1.48 | |
5 | 1.52 | 9.00 | 1.17 | |
4 | 1.52 | 9.70 | 0.928 | |
3 | 1.52 | 10.50 | 0.744 | |
2 | 1.52 | 11.50 | 0.590 | |
1 | 2.03 | 13.50 | 0.467 | |
1/0 | 2.03 | 14.60 | 0.370 | |
2/0 | 2.03 | 16.00 | 0.297 | |
3/0 | 2.03 | 17.50 | 0.236 | |
4/0 | 2.03 | 19.10 | 0.187 |
