Why Do Energy Storage Cables Play An Important Role In Energy Systems?

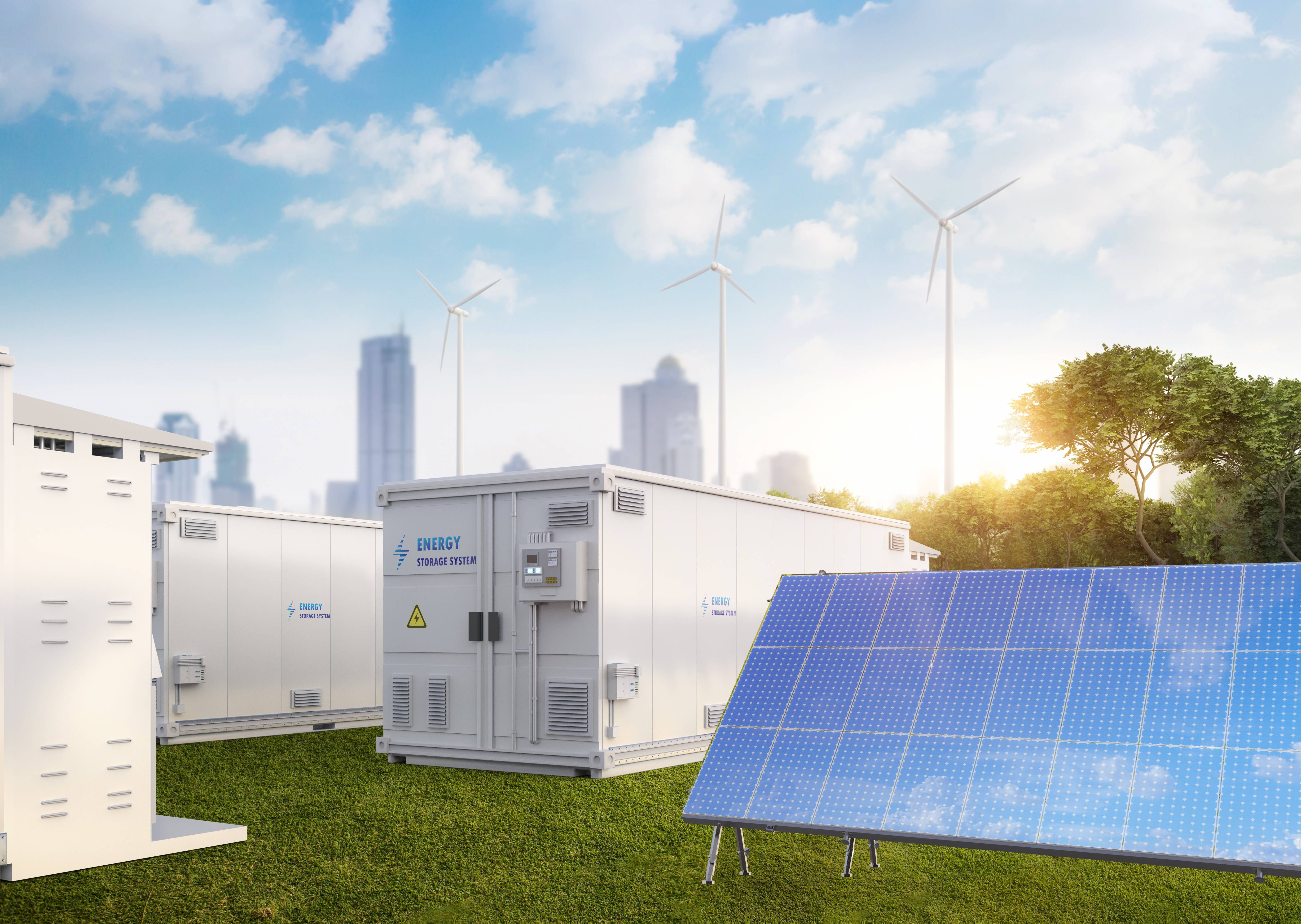

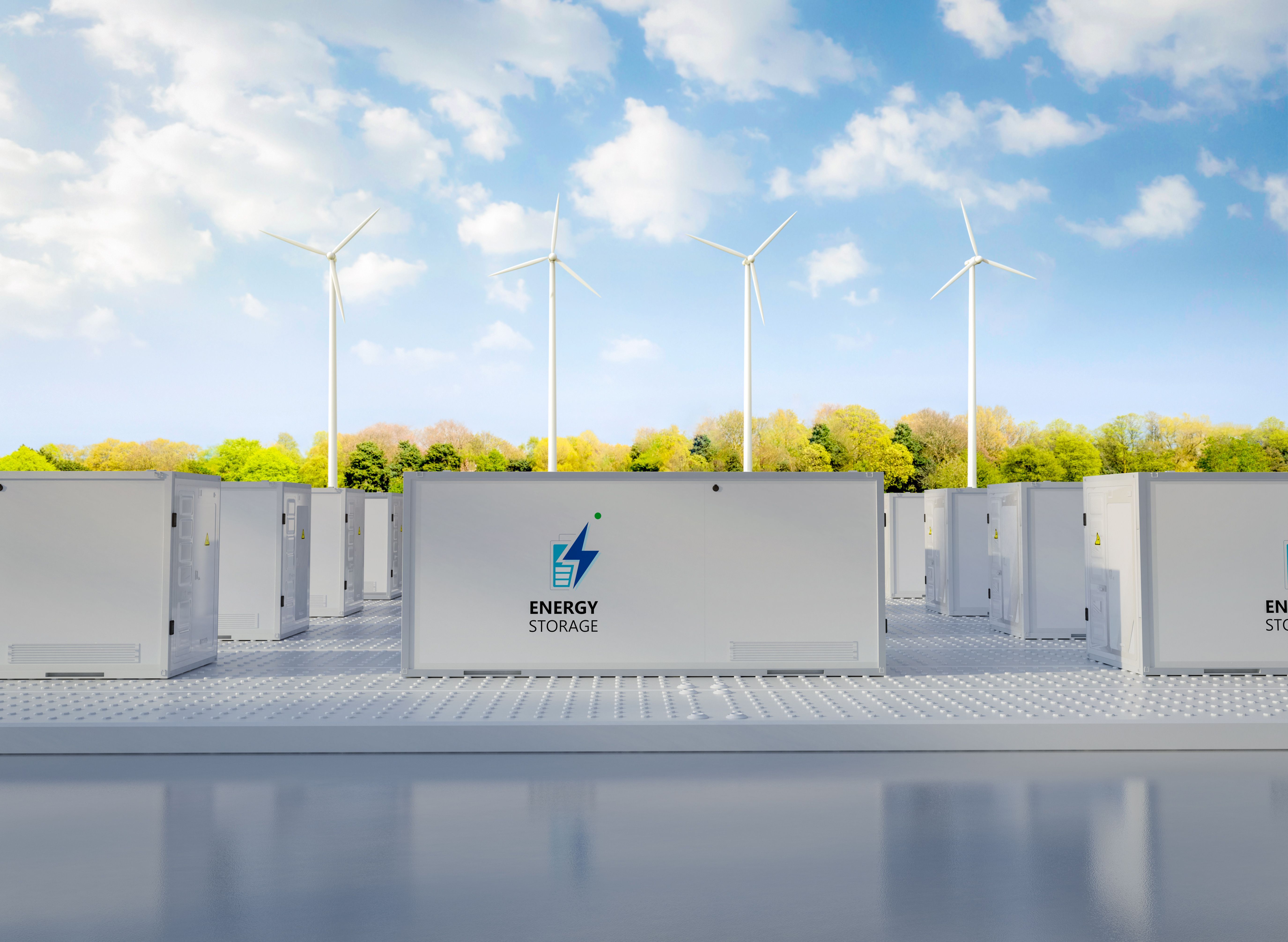

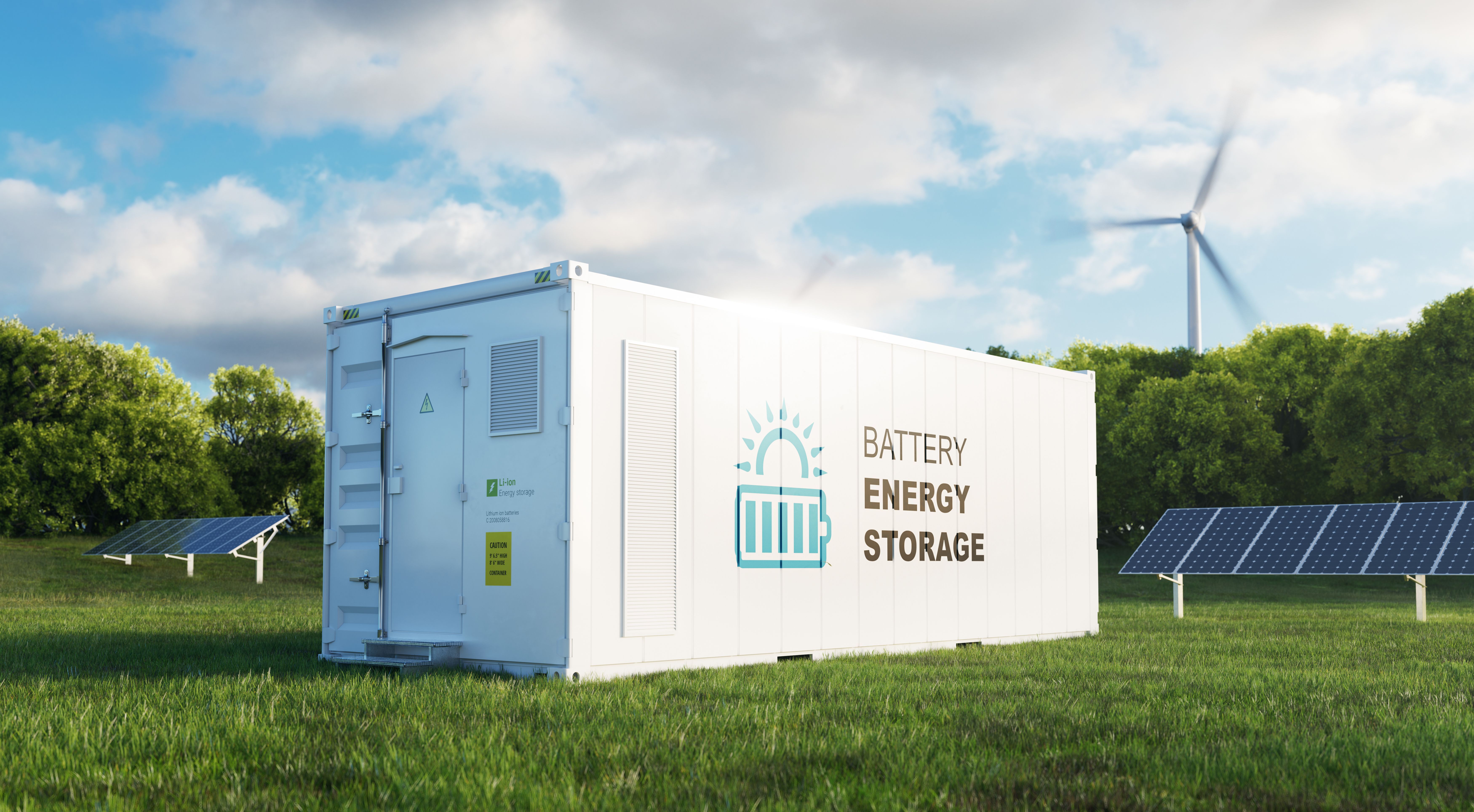

Introduction to Energy Storage Systems and the Role of Energy Storage Cables
A. Definition and Key Components of Energy Storage System
Energy Storage System (ESS) is a collection of devices or subsystems designed to store electrical energy for later use, helping to balance generation and consumption while enhancing grid resilience. In simple terms, an ESS absorbs electricity—typically from solar panels, wind turbines, or the grid—stores it in chemical or mechanical form, and then releases it as electrical power when demand rises or supply dips. Core components usually include:
· Battery Cells & Modules: Most modern ESS installations use lithium‑ion batteries, where individual cells (each with an anode, cathode, and electrolyte) are assembled into modules and racks to achieve the desired voltage and capacity.
· Alternative Storage Media: Some systems employ pumped hydro, compressed air, flywheels, or thermal storage—each converting electricity into potential or kinetic energy for later recovery.
· Bi‑directional Inverter/Converter: These devices charge the storage medium by converting AC to DC and invert DC back to AC when dispatching power to the grid.
· Transformer & Switchgear: They step voltage up or down and safely isolate the ESS from the grid or local loads.
· Battery Management System (BMS): Monitors cell voltage, temperature, and state‑of‑charge to prevent over‑charge, over‑discharge, and thermal runaway.
· Energy Management System (EMS): Oversees scheduling, dispatch logic, and communication with grid operators or facility controllers to optimize performance and economics.
Together, these elements form a turnkey storage solution, ranging from residential backup units to megawatt‑hour utility‑scale installations. Understanding them lays the groundwork for appreciating how specialized storage cables seamlessly and safely connect each part.
B. Key Applications: Grid Stabilization, Peak Shaving, and Renewables Integration
· Grid Stabilization: ESS technologies deliver rapid, on‑demand power reserves that keep frequency and voltage within strict tolerances. They respond in milliseconds to absorb excess generation or inject power during spikes, preventing outages and improving overall system resilience.
· Peak Shaving: Also known as "load leveling", ESS discharges stored energy during peak demand periods to flatten the load curve and reduce demand charges for large consumers. For example, strategic discharge during hot summer afternoons can defer costly distribution upgrades and lower utility bills, while reducing reliance on inefficient, high‑polluting peaker plants.
· Renewables Integration: ESS smooths the intermittent output of solar and wind by storing surplus generation when conditions are favorable and releasing it when they aren't. This "firming" capability boosts grid reliability, prevents renewable curtailment, and lets operators treat variable resources much like traditional dispatchable plants—vital in markets with rapid renewables growth.

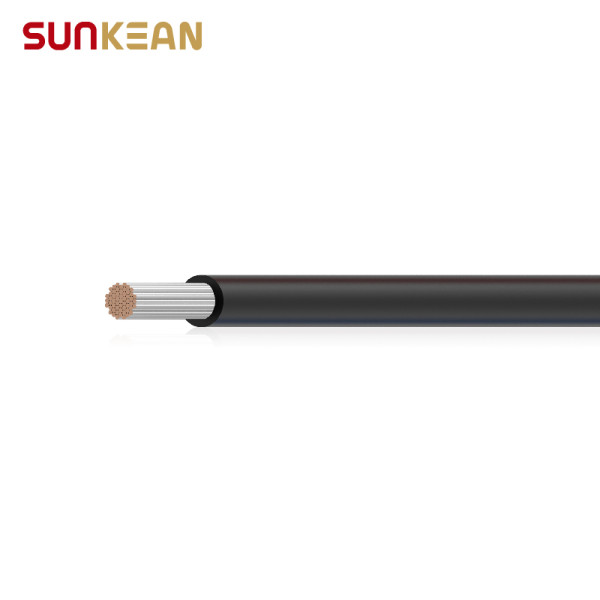

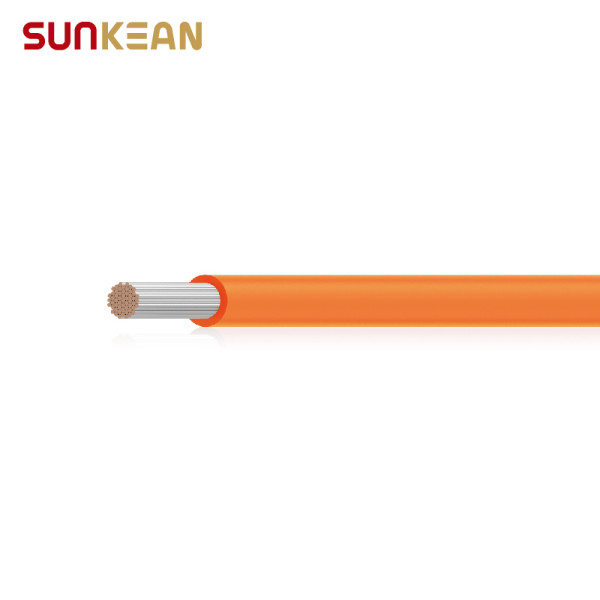

A. Definition and Core Construction of Energy Storage Cable
Energy storage cable is a specialized assembly of conductors and connectors used within a Battery Energy Storage System (BESS) to transmit high‑current DC power and low‑voltage control signals, often at voltages up to 1500 V DC. Unlike standard AC cables, these must withstand unidirectional DC stress and frequent charge/discharge cycles without insulation breakdown or overheating.
At their core, these cables use multi‑strand copper (tinned or oxygen‑free) or aluminum conductors sized to handle peak discharge currents—from a few amps in residential setups to several kiloamps in utility arrays. Over these conductors is an insulation layer—typically cross‑linked polyethylene (XLPE) or halogen‑free, low‑smoke polyolefin—rated for continuous operation up to 90 °C (with short‑term peaks to 120 °C). The insulation provides DC dielectric strength and minimizes leakage over a 25‑year lifespan. A durable outer sheath adds mechanical toughness, UV resistance, and environmental sealing (often flame‑retardant, moisture‑proof, and corrosion‑resistant), making these cables suitable for indoor, outdoor, or underground installation.
In addition to straight‑run cables, BESS often use factory‑assembled harnesses and connector kits with standardized plugs, sockets, and crimps to streamline installation and ensure consistent torque values.
B. Critical Applications of Energy Storage Cables
· Module Interconnection: Cables link individual cells and modules into strings, carrying the high DC currents needed for charging and discharging. Proper conductor sizing and robust DC‑rated insulation minimize resistive losses under cyclic loading, extending system life.
· DC Bus & Trunk Cables: Heavy‑duty trunk cables form the DC bus that carries power from the battery bank to the power conversion system (PCS). Rated up to 1500 VDC and designed for continuous high‑temperature operation, they ensure a low‑impedance, stable link between the array and inverters.
· Inverter & PCS Connections: Bi‑directional inverters require cables that handle both charging (grid‑to‑battery) and discharging (battery‑to‑grid) currents. Metallic shielding layers manage electric fields and provide fault return paths, boosting safety and EMC performance.
· Signal & Control Harnesses: Beyond power, multi‑core cables carry BMS and EMS data—monitoring voltage, temperature, and state‑of‑charge (SOC) for precise control and rapid fault detection.
· Grounding & Fault Paths: Integrated grounding conductors and braided shields offer reliable fault‑current paths to the system ground, preventing hazardous touch voltages.
· Modular Harness Kits: Pre‑assembled harnesses with plug‑and‑play connectors accelerate BESS deployment, reduce wiring errors, and ensure uniform crimp and torque quality across thousands of terminations.
Types of Energy Storage Cables
Low‑Voltage DC Interconnect Cables
Used to tie individual batteries and modules within a rack, these cables operate below 1000 VDC. They employ flexible multi‑strand copper conductors to navigate tight rack spaces, with insulation rated for continuous high‑temperature use.
High‑Voltage DC Trunk Cables
Forming the primary power conduit between the battery array and PCS, these cables are rated up to 1500 VDC. They feature large‑section copper or aluminum conductors to handle kiloampere currents without overheating, plus flame‑retardant, UV‑resistant jackets for outdoor or semi‑outdoor exposure.
Battery Interconnect Harnesses & Assemblies
Factory‑assembled cable bundles that integrate power conductors with standardized connectors. With pre‑torqued terminals and plug‑and‑play plugs, these harnesses eliminate field crimping errors, ensure uniform contact resistance, and speed up commissioning. In large BESS projects, modular kits enable parallel installation of multiple strings—reducing labor costs and downtime during expansions or replacements.
Technical Specifications and Industry Standards of Energy Storage Cable
Voltage, Current, and Temperature Ratings
· Voltage Rating: Utility‑scale BESS cables are typically rated up to 1500 VDC, matching modern lithium‑ion system voltages.
· Current Capacity: Depending on conductor size and installation method, cables are designed for continuous currents from 50 A to over 1000 A without overheating or significant voltage drop.
· Temperature Rating: Must reliably operate across diverse thermal environments, often from –40 °C up to +105 °C continuous, with short‑term peaks to 120 °C.
Certification and Compliance
Energy storage cables carry international approvals (e.g., UL, TÜV) and undergo ozone‑resistance, oxidation, VW‑1/FT‑1 flame tests, aging, and overload testing to ensure performance over their service life.
Mechanical and Environmental Requirements
· Flexibility: Small bending radius for rack‑level wiring.
· Abrasion Resistance: Tough outer jacket to withstand installation and operational wear.
· UV & Ozone Resistance: Essential for outdoor or rooftop BESS applications.
· Oil & Chemical Resistance: Suitable near industrial machinery or inverter stations.
