How to Select DC Cables Correctly: Voltage, Current & Hidden Risks
Introduction: Why DC Cable Selection Is More Critical Than You Think
Choosing the wrong DC cable is one of the most common—and costly—mistakes in power system design.
Underrated cables can overheat. Oversized cables increase unnecessary costs. And mismatched voltage and current ratings can silently reduce system efficiency—or even lead to system failure.

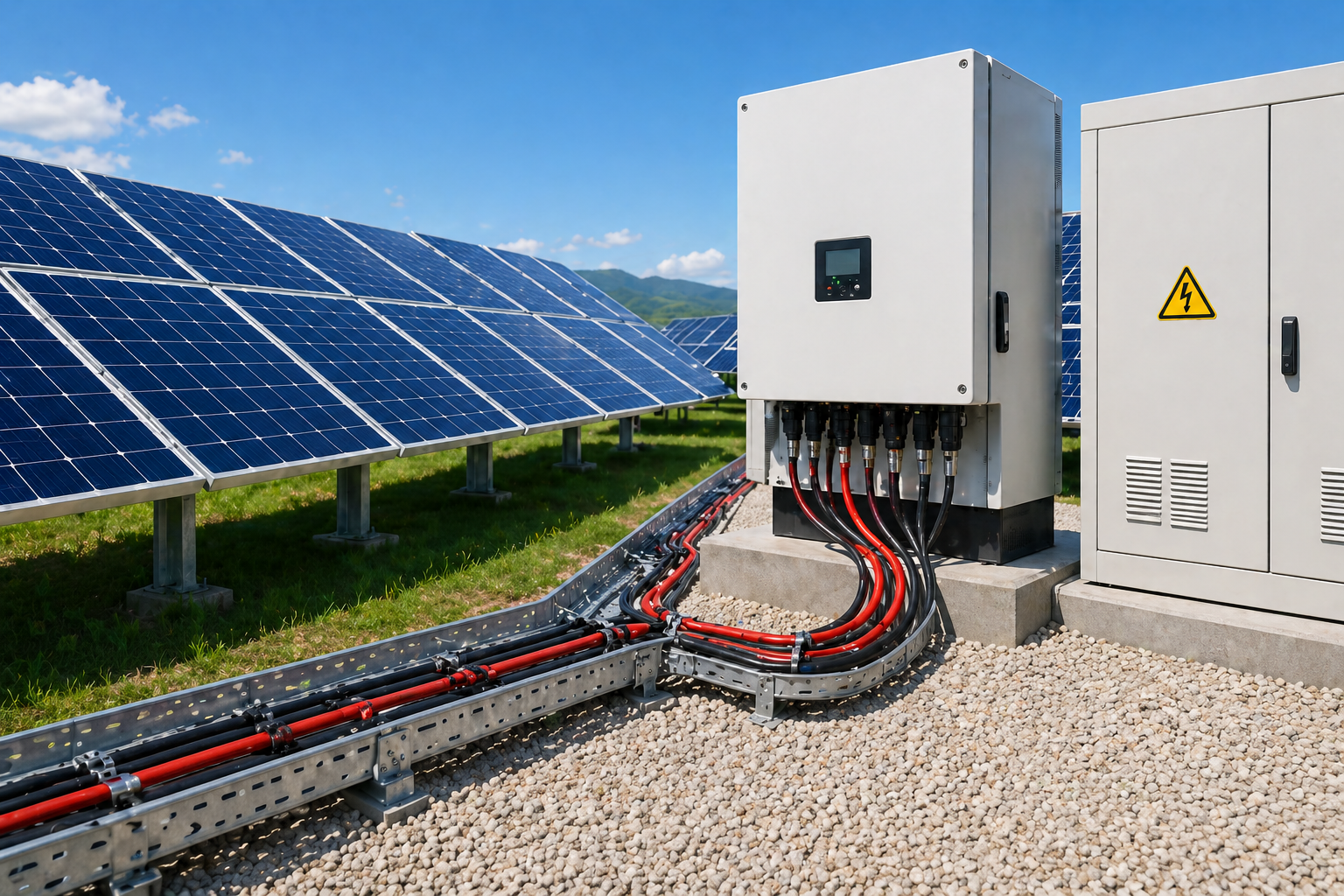

Whether you're designing a solar PV system, energy storage project, or industrial power network, understanding how voltage and current ratings work is essential.
In this guide, we break down how to select the right DC cable for maximum safety, efficiency, and long-term reliability.
What Happens If You Choose the Wrong DC Cable?
Before diving into technical definitions, it’s important to understand the real risks:
● Overheating → insulation damage and fire hazards
● Voltage drop → reduced system performance
● Energy loss → lower overall efficiency
● Frequent failures → higher maintenance costs
In many real-world projects, these issues are not caused by components—but by incorrect cable selection.
Voltage Rating Explained (And Why It Matters)
The voltage rating of a DC cable defines the maximum voltage the cable insulation can safely withstand without breaking down.
If the voltage exceeds this limit, it can lead to:
● Insulation failure
● Electrical arcing
● Short circuits
● Serious safety hazards
Key Insight:
Higher voltage = higher insulation stress
In high-voltage applications (such as solar farms), improper voltage selection can also lead to corona discharge, which causes:
● Energy loss
● Heat generation
● Long-term insulation degradation
Current Rating Explained (Ampacity Basics)
The current rating (ampacity) refers to the maximum current a cable can carry continuously without exceeding its temperature limits.
When current flows through a cable, it generates heat due to resistance.
Key Impacts of Current:
● Higher current → more heat
● Excess heat → insulation aging and failure
● Increased resistance → higher energy loss
Voltage Drop Effect
As current increases, voltage drop becomes more significant, which directly affects system output—especially in long-distance cable runs.

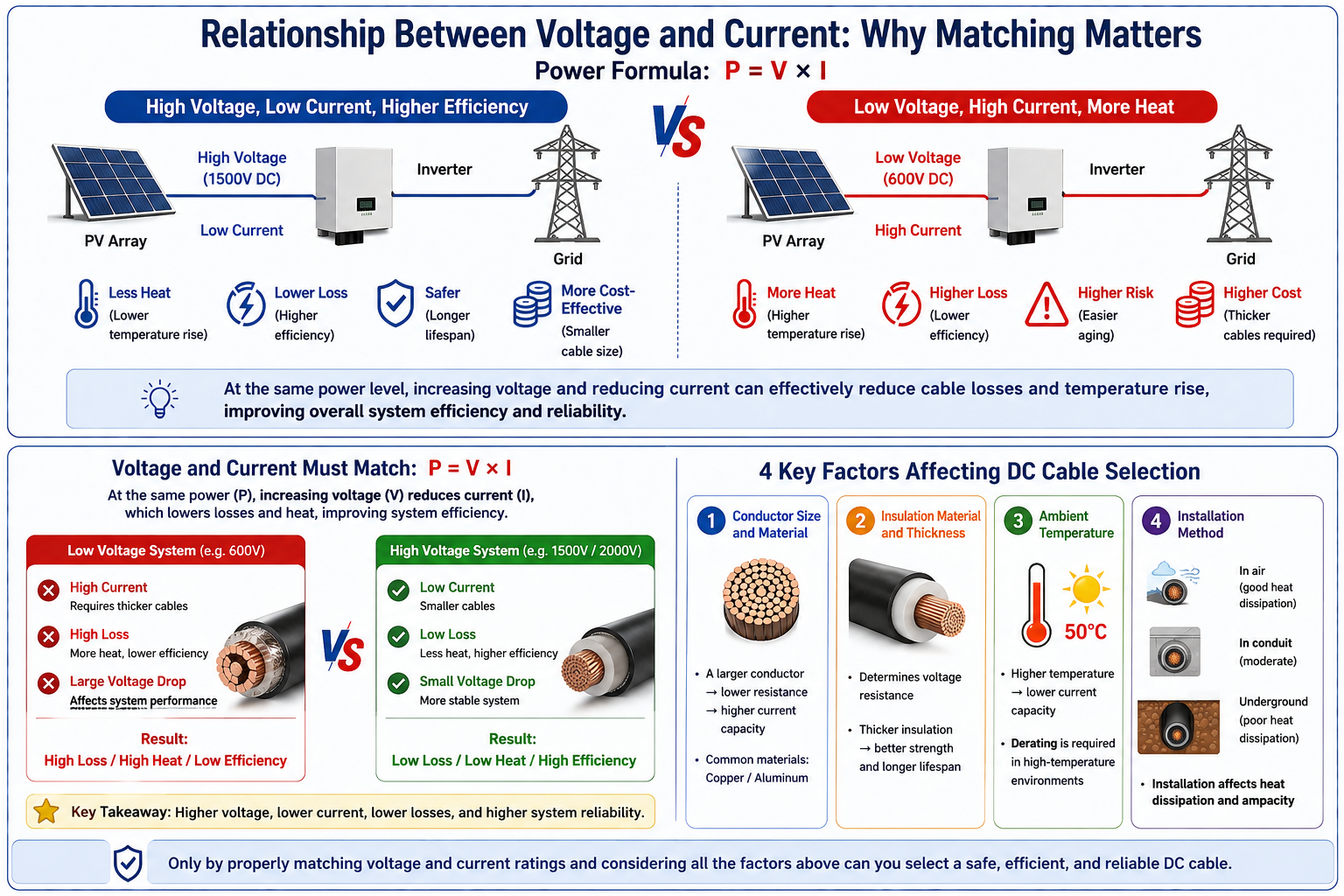

The Key Rule: Balance Voltage and Current
At the core of cable selection is a simple principle:
P=V×I
Where:
P = Power
V = Voltage
I = Current
What This Means in Practice:
Higher voltage → lower current → lower losses
Lower voltage → higher current → more heat and loss
👉 This is why modern solar and energy systems are moving toward higher voltage designs (1500V / 2000V).
4 Key Factors That Affect DC Cable Ratings
1. Conductor Size and Material
● Larger conductors → lower resistance → higher current capacity
● Copper vs Aluminum → trade-off between conductivity and cost
2. Insulation Type and Thickness
● Determines voltage resistance
● Impacts durability and lifespan
● Critical in harsh environments
3. Ambient Temperature
● Higher temperature → lower current capacity
● Requires derating in hot climates
4. Installation Conditions
● Air / conduit / underground → different heat dissipation
● Poor installation → hidden overheating risks
How to Choose the Right DC Cable (Step-by-Step)
To avoid costly mistakes, follow this practical process:
Step 1: Define System Voltage
Ensure cable voltage rating exceeds system maximum voltage.
Step 2: Calculate Current Load
Include peak conditions, not just nominal values.
Step 3: Consider Installation Environment
Account for temperature, routing, and ventilation.
Step 4: Check Standards Compliance
IEC 60287
NEC Article 310
Step 5: Leave Safety Margin
Always design with margin to ensure long-term reliability.
Conclusion: Get Cable Selection Right from the Start
Voltage and current ratings are not just technical parameters—they directly determine:
● System safety
● Energy efficiency
● Project cost
● Long-term reliability
A well-selected DC cable ensures stable operation. A poor choice can compromise the entire system.
