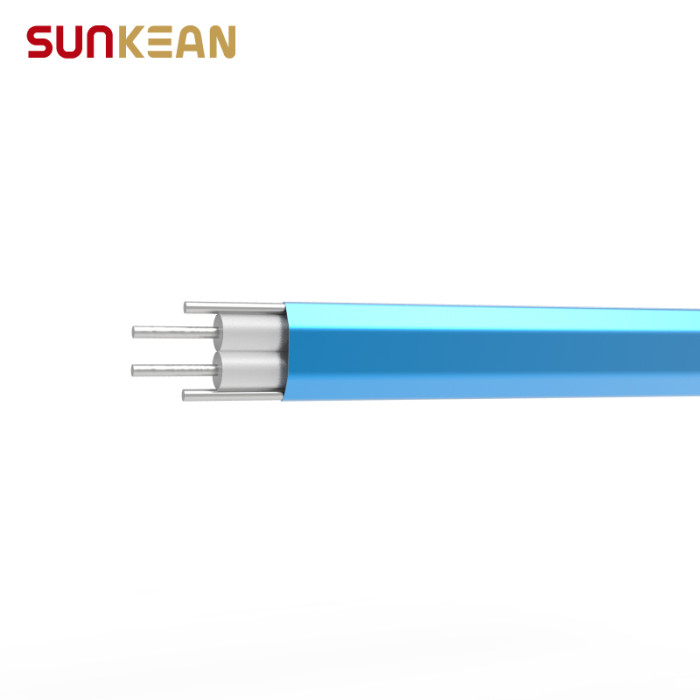

100Ω High Speed Active Optical Cable (AOC) SAS 3.0 UL Certified
Conductor: 30AWG, 32AWG, 34AWG
Insulation: FEP/PE
Insulation: FEP/PE
| Rated temperature | 80°C |
|---|---|
| Rated voltage | 30V |
| Conductor | Silver-plated |
| Insulation | FEP/PE |
| Environmental Standards Compliance | RoHS 2.0 |
| File Number | E522621 |
Detail Information
High Speed Active Optical Cable (AOC) SAS 3.0 Advantages
100Ω High Speed Active Optical Cable (AOC) SAS 3.0
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Active Optical Cable (AOC) SAS 3.0 Technical Data
Conductor | Silver-plated |
Insulation | FEP/PE |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed Active Optical Cable (AOC) SAS 3.0 Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Insertion Loss (4.5GHz) | Insertion Loss
(9GHz) | Delay |
100Ω High Speed Active Optical Cable (AOC) SAS 3.0 | 34 | 0.5 | 0.62*1.52 | 6dB | 10.2dB | 5.2ns |
32 | 0.58 | 0.75*1.75 | 5dB | 8.5dB | 5.2ns | |
30 | 0.82 | 0.96*2.18 | 4dB | 6.5dB | 5.2ns |
